Pipeline Contact Type Water Level Glue Oil Level High Precision Liquid Level Sensor Capacitive Sensor ,Sensitive

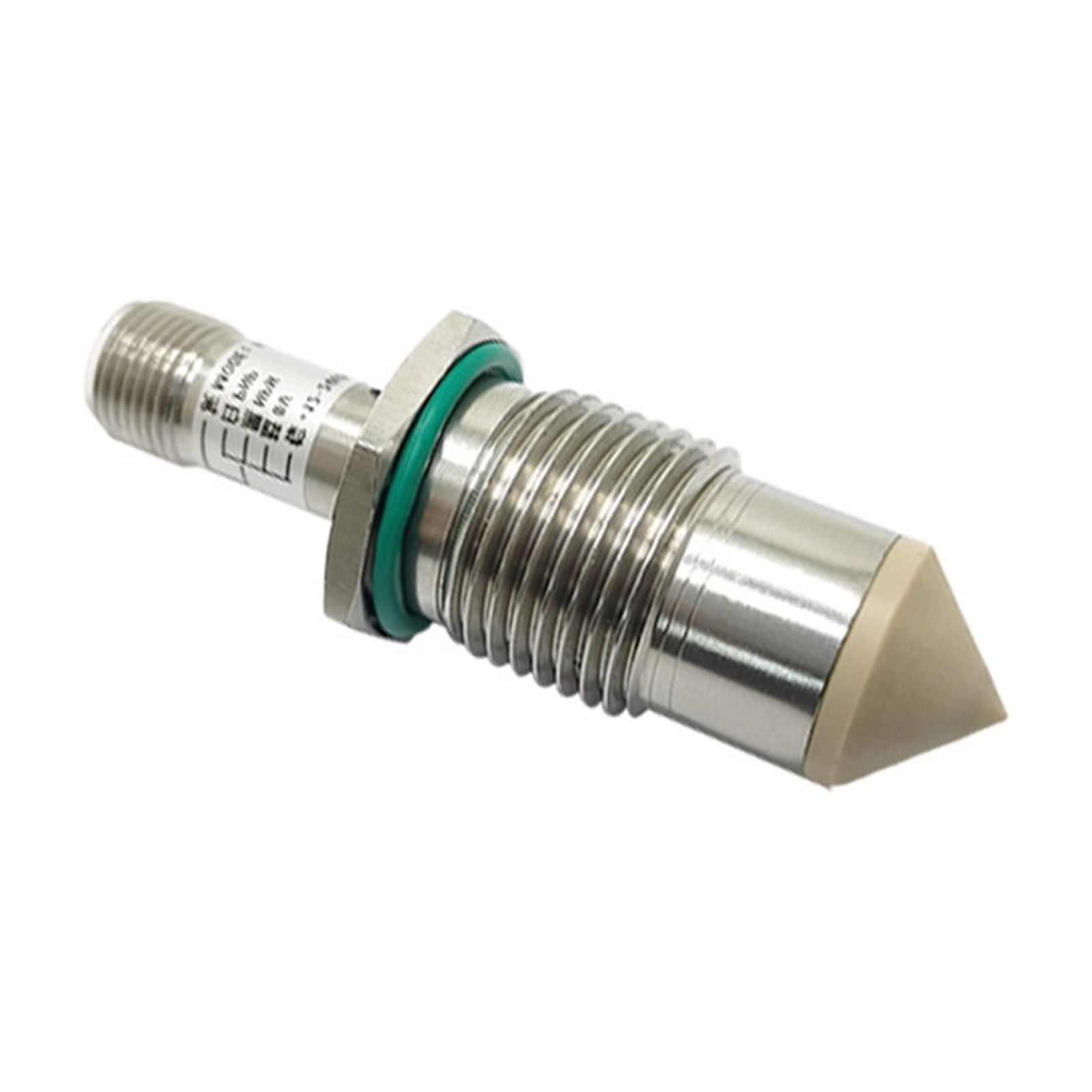

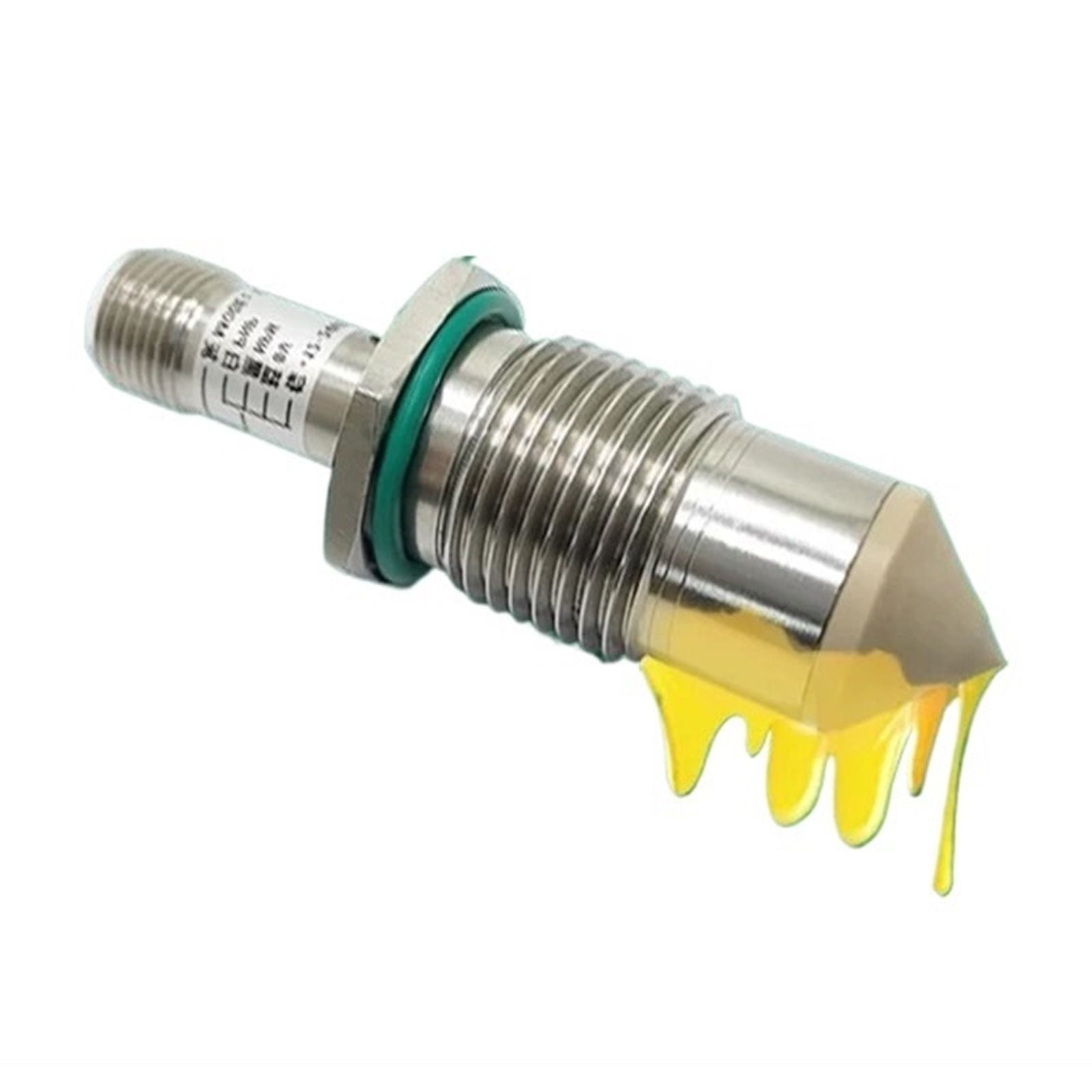

Product Details: Pipeline Contact Type Water Level Glue Oil Level High Precision Liquid Level Sensor Capacitive Sensor Can detect high viscosity liquids Designed for level detection of high-viscosity liquids such as glue, lubricating oil/grease, and ink Capacitive detection: Determine whether there is liquid and distinguish liquid by detecting the size of the liquid’s capacitance. Conical head anti-hanging liquid design: whether it is installed straight or side-mounted, it reduces the appearance of hanging liquid on the inspection machine head as much as possible Ingenious design: the head is made of PEEK, the shell is 316 stainless steel, and has good anti-corrosion ability: 1/2 Pipe end pattern design, easy installation, can be directly connected with the pipe tee: the tapered head is seamlessly connected with the stainless steel shell, multiple sealing protection, the tail fluorine rubber sealing ring, so that it can meet the requirements of high pressure resistance and high sealing; it can resist 2 MPa pressure. Special circuit design: Even if there are liquid residues, bubbles, and ignorance in the probe part, the appearance of false signals can be regulated by adjusting the sensitivity. Stability detail design: Add temperature compensation, reverse connection protection, and overvoltage protection to improve reliability. This product can stably detect in the range of low temperature -25°C and high temperature 85°C. These detailed designs ensure the stability of detection performance to a large extent. Detection distance: contact detection Protection level: IP67 Output signal: NPN PNP dual output Working temperature: -25- 85 Maximum output current: 100mA Power supply voltage: DC12-24V Detection source theory: Capacitive detection Test objects: food-grade materials, corrosive materials, high-viscosity materials Installation size: NV24MM hexagon G1/2 pipe thread Detection speed: response speed is 20ms, switching output frequency is 50HZ Protection: extreme anti-protection, over-current protection Display: LED output indicator: red: power indicator, green: output indicator Setting method: multi-turn precision potentiometer rotation setting Adjustment: Sensitivity is adjustable Outlet mode: M12-5 core waterproof aviation connection device Wide range of applications Food testing, powder testing, ternary material testing, glue testing, oil testing, grease testing Wiring: Brown: positive Blue: negative electrode Black: NPN White: PNP Related Products:water level sensor,liquid level sensor,water tank level sensor Brand: Vivifly Assembled Product Weight: 17.65 oz Manufacturer: Please see product details
