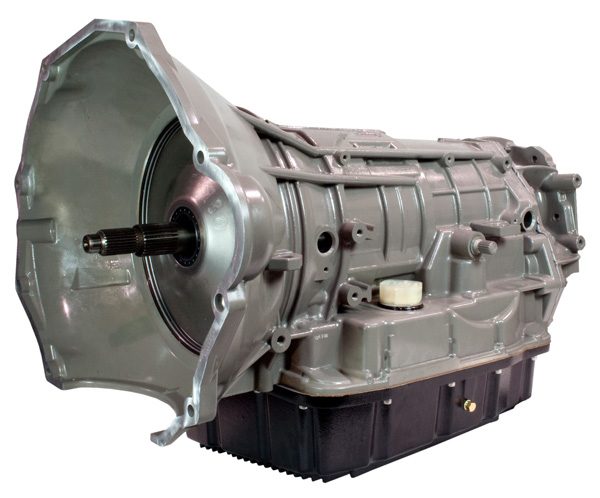

BD Diesel 1064444F Heavy Duty Performance Transmission – 4WD

DescriptionDescriptionInstallation Manuals (2)  Machined center supportMachined intermediate pistonMachined low/reverse pressure plateMachined rear ring gear hubAdded lube circuits to OD planetAdded lube and support to output and intermediate shaftsReplaced all aluminum planetaries with steelDrilled and tapped direct and intermediate feeds to prevent leaks at caseRe-programmed accumulator bodyFull shift kit with line mod valve to increase pressuresAccumulator body enhanced oil flowIncreased cooler pressureIncreased pressure to converterCreates positive clutch applicationCreated lube circuit for towing in overdrive1990-2003 include auxiliary frame mounted full flow filter kitClutch Count: COAST CLUTCH 2Clutch Count: FORWARD 5Clutch Count: DIRECT 5Clutch Count: LOW REVERSE 7Clutch Count: INTERMEDIATE 4Clutch Count: OVERDRIVE 4Pan adds 6qt extra oil capacityFully rollerized geartrainTighter clutch packs that provide a quicker shift30%-40% more clutch material with additional steelsImproved internal lubrication by adding high power boost valvesReworked front pumpImproved bearing designsUpgrade supportsUpgraded spragsSure-loc snap ringsSolenoids hard wiring providing high temperature resistanceIncrease the durability of your drivetrainRevised oil circuitsHandles up to 300% more power and torque than the stock transmissionExtra clutches and stronger internalsBD rigid aluminum heavy duty transmission panPan reduces case flexPan reduces internal oil leakagePan heat-dissipating fins keep temperature downPan magnetic drain plugNot warranted for Race or Sled Pull useEach transmission is dyno tested WarrantyParts36-Months150,000 MilesLabour12-Months24,000 milesNoteNo Race abuse covered. Remote filter required for inspection with cooler flow rate in GPM at Oil/Air transmission cooler outlet. NoteAdd “PTO” to part number for PTO provision (i.e. 1064444FPTO or 1064444FPTOLR)Add “LR” for 4:88 rear end ratio or lower (i.e. 1064444FLR or 1064444FPTOLR)BD Torque Converter strongly suggested with install of transmission
